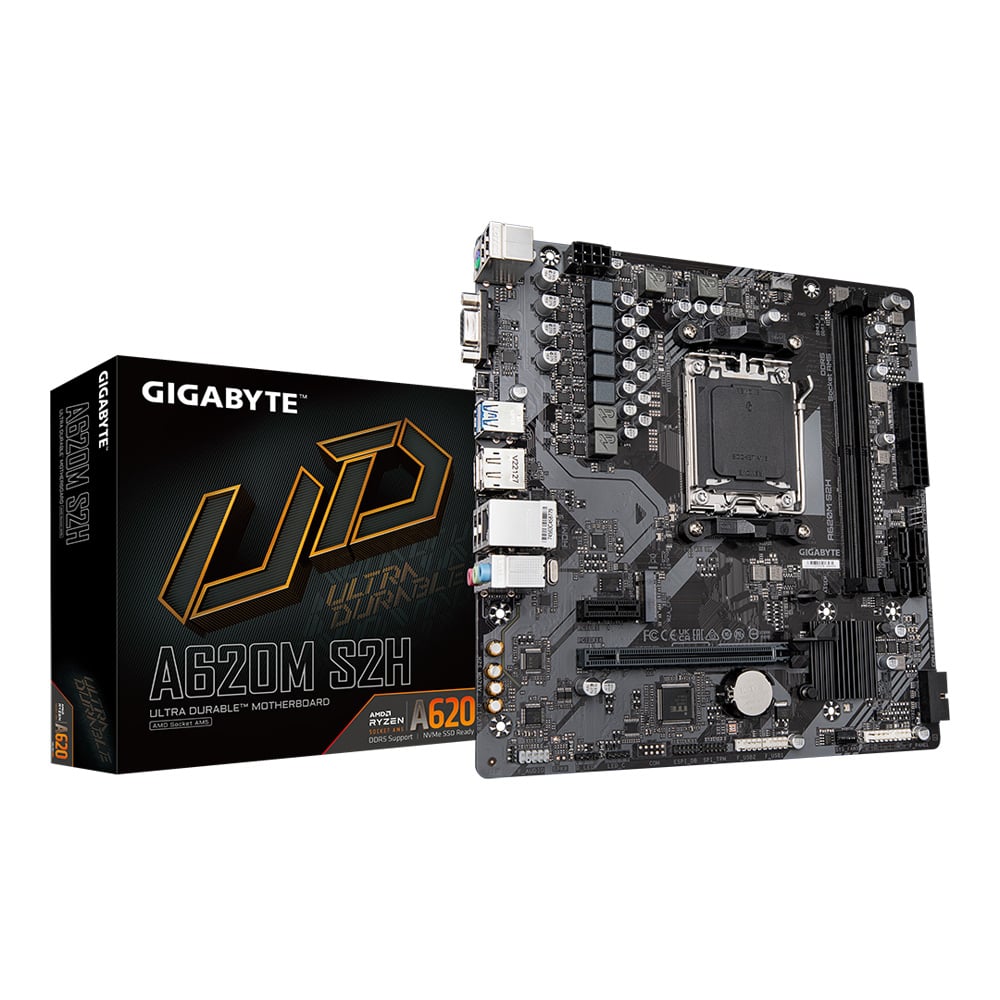

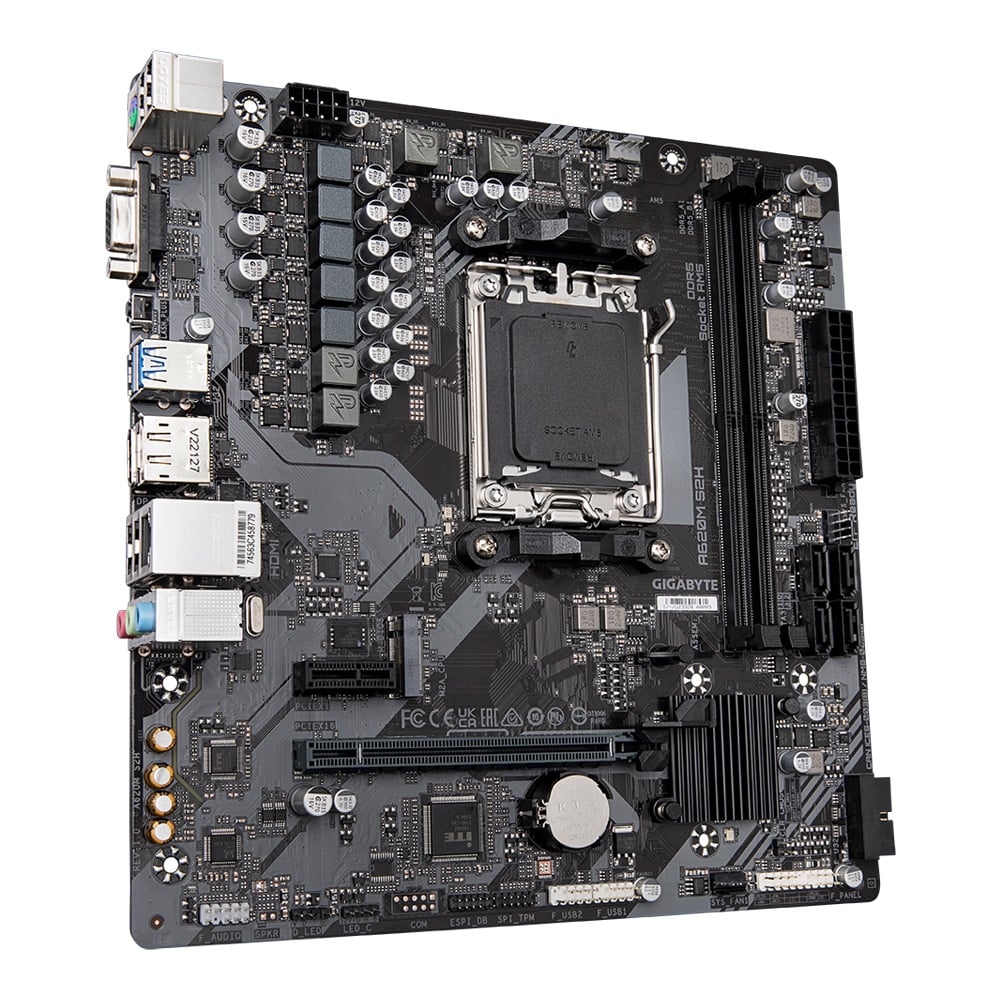

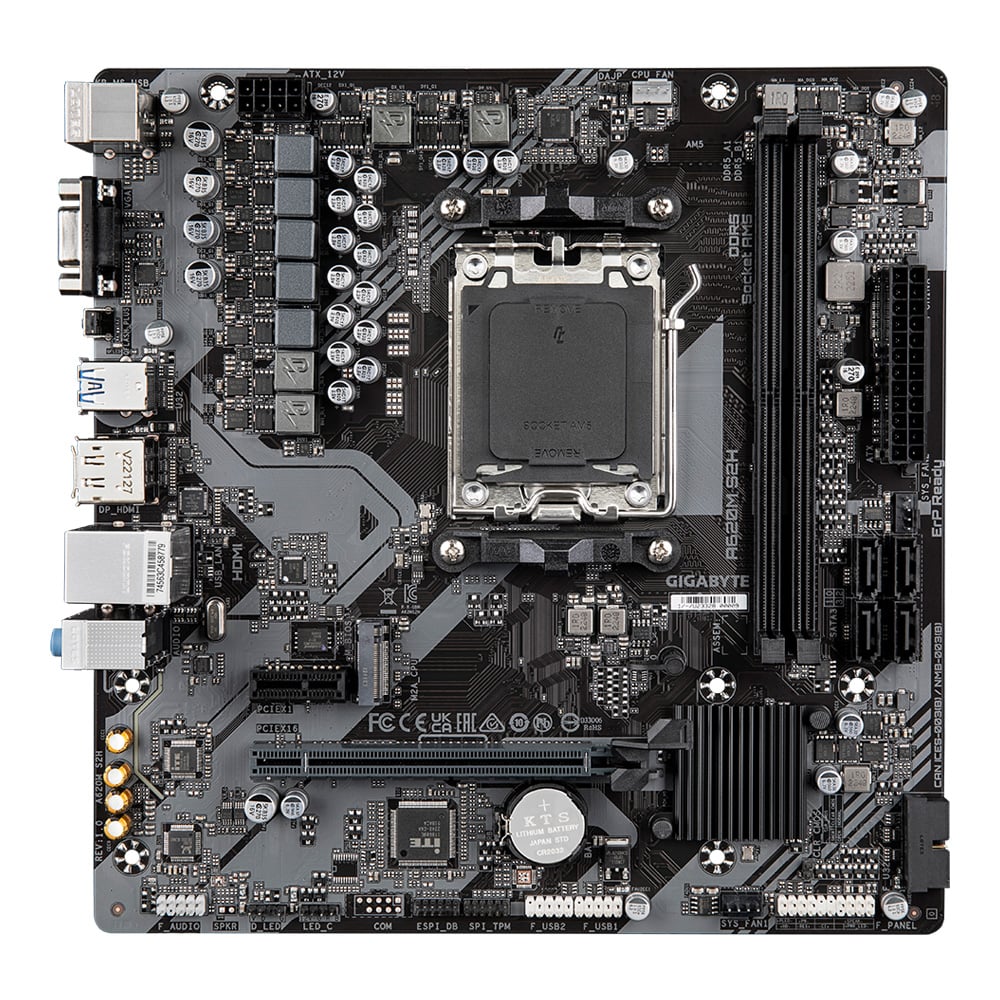

GIGABYTE A620M S2H (REV. 1.0) (DDR5) (SOCKET AM5) (MICRO-ATX)

Gigabyte

A620M S2H (rev. 1.0)

AM5 (7000 Series – Raphael)

170W

AMD A620

Ryzen 5 , Ryzen 7 , Ryzen 9

2

DDR5

96 GB

4400 , 4800 , 5200 , 5200 (OC) , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC)

Requires a CPU with Integrated Graphics.
—
Integrated Graphics Processor:
• 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
—
• 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version.
—
• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
—
(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time

Realtek

2/4/5.1/7.1-channel

– Port

4 Port

RAID 0, RAID 1, RAID 10 for SATA Storage Devices
RAID 0, RAID 1, RAID 10 for PCIe / NVMe Storage Devices

1 x M.2 Connector
—
CPU:
• 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
Port

CPU:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
—
Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot

Realtek 1Gb Ethernet

10/100/1000 Mbps

No

4 Port

– Port

– Port

– Port

2 x USB 3.2 Gen 1 Type-A Port

1 Port

– Port

1 Port

1 Port

3 Port

1 (Keyboard/Mouse combo) Port

1 x Q-Flash Plus button

1 Port

Micro ATX

24 + 8 Pin

23.0 x 22.5 cm

3 Years
